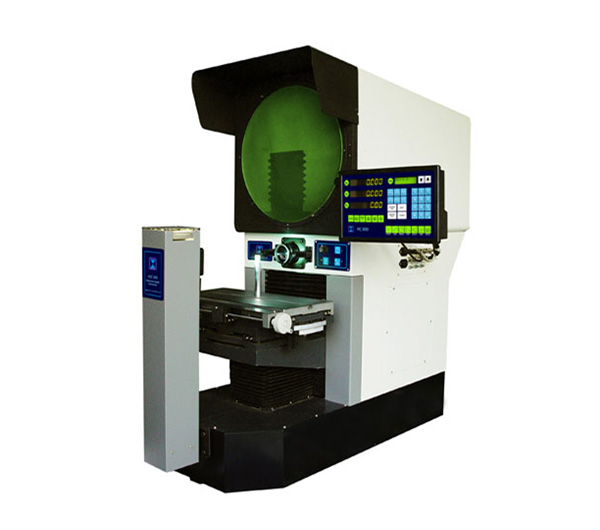

¢400mm Horizontal Profile Projector HOC400-2515

The protractor screen has an effective diameter of 400mm (15"), allowing large work pieces to be inspected. The screen rotation can be digitally displayed with a resolution of 1' or 0.01.
  • Description
  • Technical Parameter
Character:
The protractor screen has an effective diameter of 400mm (15"), allowing large work pieces to be inspected. The screen rotation can be digitally displayed with a resolution of 1' or 0.01°.
Characteristic:

• 400mm diameter screen with digital protractor;
&bull Magnification accuracy:0.08% contour, 0.12% surface;
• Halogen profile and fiber surface illumination;
• Geometric multifunction data processing system;
•Available mini-printer, foot-switch and other accessories;

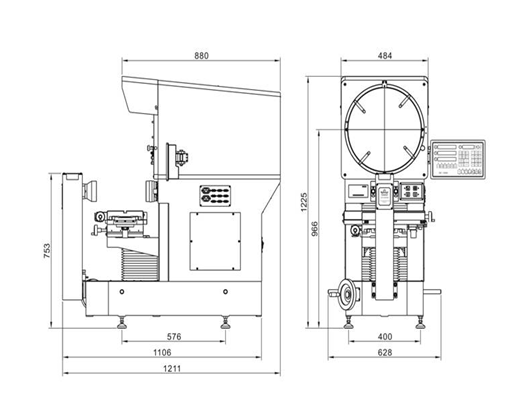

Overall Size:

  • Technical data:

    model

    HOC 400-2515

    Working table’s size

    450*200mm

    Stage Travel X-axis

    250mm

    Stage Travel Z-axis

    150mm

    Stage Travel Y-axis

    100mm(focus)

    Stage turning angle

    ±15º

    Measuring Accuracy

    ≤(4+L/25)µm

    Screen

    Screen Diameter: ¢400mm with 4 film clips

    Screen material: fine ground glass

    Reference line: Staggered cross and cross-hair

    Screen rotary range: 0°~360°

    Rotary angle resolution:1’ or 0.01°

    Digital Readout

    DC-3000 Counter with RS232 output (can collect the data and measure the point, line, circle, angle and distance).

    Illumination

    Contour Illumination: 24V/150W Halogen bulb
    Reflected Illumination: 21V/150W Halogen bulb, illuminated by two optical fibers

    Power

    AC110/220V, single phase 50/60Hz Total power 400W

    Cooling

    Built-in cooling fans

    G.W/N.W

    300KG/240KG

    Dimension(L*W*H mm)

    1211*628*1225(mm)

    Magnification

    magnification

    5X

    10X

    20X

    50X

    100X

    View field diameter

    Ф80

    Ф40

    Ф20

    Ф8

    Ф4

    Working Distance(mm)

    93.7

    103.9

    95.1

    65.7

    35.0

    Max. Work piece width

    180

    240

    240

    240

    240

    Max. Work piece diameter whose edge line can be focused on the screen center

    Ф200

    Ф200

    Ф200

    Ф200

    Ф200

    Measuring Software

    Edge Detector

    HOC400-5X Objective

    HOC400-20X Objective

    HOC400-50X Objective

    HOC400-100X Objective

    Holder with clamp

    V block with clamp

    Swivel center support

    Mini-printer

    Rotary table

    Calibration Scale
