• 400mm diameter screen with digital protractor;
&bull Magnification accuracy:0.08% contour, 0.12% surface;
• Halogen profile and fiber surface illumination;
• Geometric multifunction data processing system;
•Available mini-printer, foot-switch and other accessories；
|
model |
HOC 300-2010 |
||||||
|
Working table’s size |
400*150mm |
||||||
|
Stage Travel X-axis |
200mm |
||||||
|
Stage Travel Y-axis |
75mm(focus) |
||||||
|
Stage Travel Z-axis |
100mm |
||||||
|
X/Y/Z-axis Resolution |
0.5µm |
||||||
|
Measuring unit |
Built-in linear scales |
||||||
|
Stage turning angle |
±15º |
||||||
|
Measuring Accuracy |
≤(4+L/25)µm |
||||||
|
Screen |
Screen Diameter: ￠300mm with 4 film clips |
||||||
|
Screen material: fine ground glass |
|||||||
|
Reference line: Staggered cross and crosshair |
|||||||
|
Screen rotary range: 0°～360° |
|||||||
|
Rotary angle resolution:1’ or 0.01° |
|||||||
|
Digital Readout |
Axes displayed: X,Y and Q axes |
||||||
|
Illumination |
Contour illumination: 24V/150W halogen bulb |
||||||
|
Power |
AC110V/220V, single phase 50/60Hz,Total power 400W |
||||||
|
Cooling |
Built-in cooling fans |
||||||
|
G.W/N.W |
210KG/160KG |
||||||
|

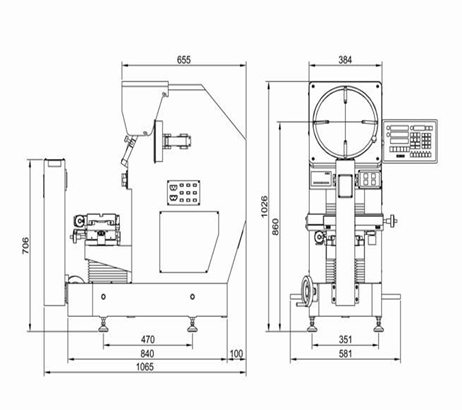

Dimension(L*W*H mm) |
1090*585*1010 (mm) |
||||||
|
Magnification |
magnification |
10X |
20X |
50X |
100X |
||
|
View field diameter |
Ф30 |
Ф15 |
Ф6 |
Ф3 |
|||
|
Working distance |
77.7 |
44.3 |
38.4 |
25.3 |
|||
|
2D Measuring Software |
Edge Detector |
Charts(3 kinds) |
|||||
|
HOC 300-20X Objective |
HOC300-50X Objective |
HOC300-100X Objective |
|||||
|
Holder with clamp |
V block with clamp |
Swivel center support |
|||||
|
Mini-printer |
Rotary table |
Calibration Scale |
|||||
|
Digital Readout DC-3000 |
HOC12-10X Objective |
Screen Clamp |
|||||
|
Foot-Switch |
Power Cable |
Light source |
|||||
