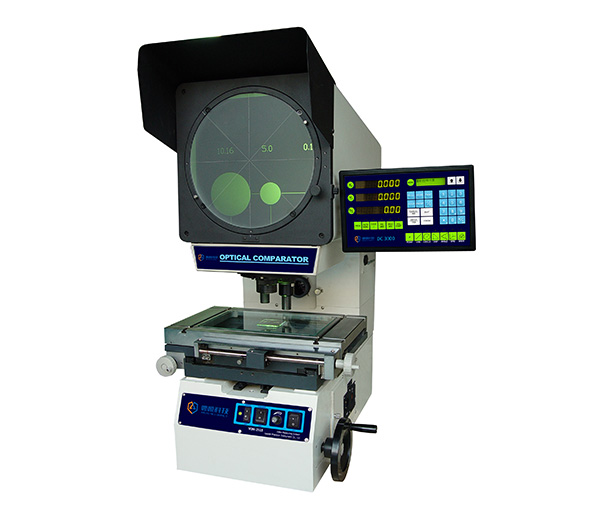

A three-lens mounting turret includes a 10X lens as standard, three types of lens (20X, 50X, 100X) are available.
This model is with erect imageOverall Size:
|
model |
VOM-2010 |
VOM-2515 |
|||
|
Metal table’s size(mm) |
404*228 |
450*280 |
|||
|
Glass table’s size(mm) |
260*160 |
306*196 |
|||
|
Stage Travel X-axis |
200mm |
250mm |
|||
|
Stage Travel Y-axis |
100mm |
150mm |
|||
|
Stage Travel Z-axis |
100mm(for focus) |
100mm(for focus) |
|||
|
Resolution |
0.5µm |
0.5µm |
|||
|
Measuring unit |
Built-in linear scales |
Built-in linear scales |
|||
|
Accuracy |
≤±(2.2+L/150)µm |
≤±(2.2+L/150)µm |
|||
|
Screen |
Screen Diameter: ￠312mm with 4 film clips |
||||
|
Screen material: fine ground glass |
|||||
|
Reference line: Staggered cross and cross-hair |
|||||
|
Screen rotary range: 0°～360° |
|||||
|
Rotary angle resolution:1’ or 0.01° |
|||||
|
Digital Readout |
DC-3000 Counter with RS-232 output |
||||
|
Illumination |
Contour Illumination: 24V/150W Halogen bulb |
||||
|
Power |
AC100-120V, 200-240V, single phase 50/60Hz Total power 400W |
||||
|
Cooling |
Built-in cooling fans |
||||
|
G.W/N.W |
230/180KG |
||||
|
Dimension (L*W*H ) |
780*810*1100(mm) |
||||
|
objective lens |
magnification |
10X |
20X |
50X |
100X |
|
object of view（mm） |
Ф30 |
Ф15 |
Ф6 |
Ф3 |
|
|
Working distance(mm) |
77.7 |
44.3 |
38.4 |
25.3 |
|
|
Max measuring height（mm） |
90mm |
90mm |
90mm |
90mm |
|
objective lens |
magnification |
10X |
20X |
50X |
100X |
|
object of view（mm） |
Ф30 |
Ф15 |
Ф6 |
Ф3 |
|
|
Working distance(mm) |
77.7 |
44.3 |
38.4 |
25.3 |
|
|
Max measuring height（mm） |
90mm |
90mm |
90mm |
90mm |
